BAseries

BI-POLAR HIGH-RIPPLE AT 1KHz



Item

Characteristics

Operating Temperature Range

- 40~85ºC

Rated Working Voltage  Range

50V~100V DC

Capacitance Tolerance
(1KHz,25ºC )

�� 10%(K)

Leakage Current (25ºC)

I 0.04CV or 10 (uA)
I : Leakage Current (uA)
C : Rated Capacitance (uF)
V : Working Voltage (V)
After 5 minutes applying the DC working voltage


Surge Voltage (25ºC)

W. V.

50

100

S. V.

63

125


Disspation Fator (120Hz,25ºC )
(Tan. )

W. V.

50

100

S. V.

0.1




Temperature Characteristics

W. V.

50

100

-25ºC /+25ºC

4

4

-40ºC /+25ºC

6

6

Impedance ratio at 120Hz


Load Test

After 1000 hours application of W.V. at +85ºC
the capacitor shall meet the following limits

Capacitance change

��25% of initial value

Tan.

200% of initial  specified value

Leakage current

initial specified value



Shelf Test

After 500 hours application of W.V. at +8ºC
the capacitor shall meet the following limits

Capacitance change

��25% of initial value

Tan.

200% of initial  specified value

Leakage current

200% of  initial specified value



BAseries

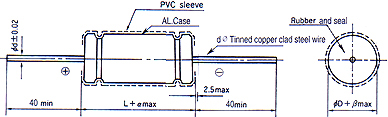

Dimensions



Unit (mm)



D

6

10

13

16

18

F �� 0.02

0.5

0.6

0.6

0.8

0.8





D x L (m/m)



uF\ WV

50V

100V

 D x L (mm)

R. C.

 D x L (mm)

R. C.

1

8x17

86

8x17

90

1.5

8x17

95

8x17

100

2.2

8x17

125

8x17

135

3.3

8x17

155

8x17

165

4.7

8x17

180

10x20

195

5.6

8x17

210

10x20

230

6.8

10x20

230

10x20

270

8.2

10x20

260

10x20

90

10

10x20

310

10x20

360

15

10x20

360

10x24

560

22

10x24

520

10x24

580

33

10x24

610

13x26

760

47

10x24

730

13x31

860

68

13x26

950

13x31

1080

100

13x31

1400

16x33

1640

�@
