GAseries

FOR GENERAL PURPOSE

Item

Characteristics

Operating Temperature Range

-40~105ºC

-25~105ºC

Rated Working Voltage Range

10V~100V DC

160V~450V DC

Capacitance Tolerance (120Hz, 25ºC)

��20%(M)

Leakage Current ( 25ºC)

10V~100V DC

160V~450V DC

I0.02CV or 3(uA)

I0.03CV or 40(uA)

I : Leakage Current (uA)
C : Rated Capacitance (uF)
V : Working Voltage (V)
After 5 minutes applying the DC working voltage

Surge Voltage (25ºC)

W. V.	10	16	25	35	50	63	100	160	200	250	350	400	450
S. V.	13	20	32	44	63	79	125	200	250	300	400	450	500

Dissipation Factor (120Hz, 25ºC)

W. V.	10	16	25	35	50	63	100	160	200	250	350	400	450
Tan.	0.20	0.17	0.15	0.12	0.10	0.10	0.20	0.20	0.20	0.20	0.20	0.24	0.24

For capacitance exceeding 1000 uF, add 0.02 per increment of 1000 uF

Temperature Characteristics
(Tan.)

W. V.	10	16	25	35	50	63	100	160	200	250	350	400	450
-25ºC/+25ºC	4	3	3	2	2	2	2	8	8	8	12	15	16
-40ºC/+25ºC	8	6	4	3	3	3	3	6	8	10	-	-	-

Impedance ration at 120Hz

Load Test

After 1000 hours application of W.V. at +105ºC
the capacitor shall meet the following limits

Capacitance change	��20% of initial value
Tan.	150% of initial specified value
Leakage current	initial specified value

Shelf Test

After 500 hours application of W.V. at +105ºC
the capacitor shall meet the following limits

Capacitance change	��20% of initial value
Tan.	150% of initial specified value
Leakage current	200% of initial specified value

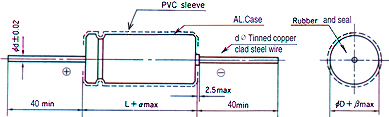

GA	Dimensions

L16=1	D10=0.5
L>16=2	D10=1.0

Unit (mm)

D	5 , 6	8	10	13	16	18	20	22
d �� 0.02	0.5	0.5	0.6	0.6	0.8	0.8	0.8	0.8

D x L (m/m)

uF\WV	10		16		25		35		50		63		100
0.47									5x13	8	5x13	8	5x13	10
1	Dimension:D x L (mm)								5x13	12	5x13	12	5x13	14
2.2	Ripple Current : mA (rms) at 120Hz 105ºC								5x13	18	5x13	20	5x13	22
3.3									5x13	23	5x13	24	5x13	27
4.7									5x13	27	5x13	29	6x13	34
10					5x13	40	5x13	40	5x13	40	6x13	48	6.3x14	58
22			5x13		5x13	48	5x13	59	6x13	62	6.3x14	81	8x16	100
33	5x13		5x13	58	6x13	65	6x13	69	6.3x14	88	8x13	99	10x17	135
47	5x13	60	6x13	73	6x13	77	6x13	105	8x13	115	8x16	138	10x21	150
100	6x13	98	6.3x14	102	8x13	140	8x13	205	10x17	252	10x17	280	13x22	300
220	8x13	170	8x13	220	8x16	260	8x16	305	10x21	320	13x22	394	16x28	505
330	8x16	243	8x16	250	10x17	320	10x17	350	13x22	415	13x22	505	16x33	660
470	8x16	315	8x16	385	10x21	420	10x21	530	13x22	640	13x27	715	16x36	875
1000	10x17	480	10x21	615	13x22	760	13x22	820	16x33	955	18x36	1150	22x43
2200	13x22	940	13x24	1000	16x28	1050	16x28	1165	18x36	1680	22x43	1980
3300	13x27	1150	16x28	1340	16x33	1500	16x33	1800	22x43	2080	25x52
4700	16x28	1400	16x33	1580	18x36	1980	18x36	2100	25x43		25x52

uF\WV	160		200		250		350		400		450
0.47
1	6x13	10	6.3x14	10	6.3x14	11	8x16	11	8x16	13	8x16	13
2.2	6x13	16	8x16	16	8x16	21	8x20	21	10x17	32	10x21	32
3.3	8x16	26	8x16	26	8x20	26	8x20	26	10x17	33	10x21	33
4.7	8x16	29	8x16	29	10x17	29	10x21	29	13x22	52	13x22	52
10	10x17	44	10x21	48	10x21	80	13x22	84	13x22	86	13x27	90
22	13x22	78	13x22	78	13x27	86	13x27	86	16x33	86	16x36	91
33	13x22	105	13x27	116	16x28	116	16x33	116	16x36		16x40
47	13x27	175	13x27	238	16x33	238	16x40		18x42		18x42
100	16x33	410	16x36	460	18x42	460	22x43		25x52		2552
220	18x42	515	22x43	585	22x43

�@
