Item

Characteristics

Operating Temperature Range

- 40~85ºC

Rated Working Voltage  Range

10V~100V DC

Capacitance Tolerance
(120Hz,25ºC )

��'20%(M)

Leakage Current (25ºC )

I 0.04CV or 10 (uA)
I : Leakage Current (uA)
C : Rated Capacitance (uF)
V : Working Voltage (V)
After 5 minutes applying the DC working voltage

Surge Voltage (25ºC )

Disspation Fator (120Hz,25ºC )
(Tan.)

Temperature Characteristics

Impedance ratio at 120Hz

Load Test

After 1000 hours application of W.V. at +85ºC
the capacitor shall meet the following limits

Shelf Test

After 500 hours application of W.V. at +85ºC
the capacitor shall meet the following limits

NRseries

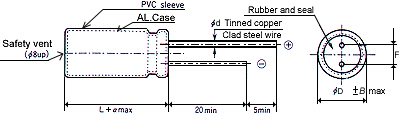

Dimensions

L16=1

D10=0.5

L>16=2

D10=1.0

Unit (mm)

D

5

6

8

10

13

16

F �� '0.5

2

2.5

3.5

5

5

7.5

d �� '0.02

0.5

0.5

0.5

0.6

0.6

0.8

 D x L (m/m)

uF\WV

10

16

25

35

50

63

100

0.47

5x11

10

5x11

10

5x11

13

1

Dimension:  D x L (mm)

5x11

16

5x11

16

5x11

20

2.2

Ripple Current : mA (rms)  at 120Hz 85ºC

5x11

24

5x11

24

5x11

32

3.3

5x11

29

5x11

35

5x11

47

4.7

5x11

39

5x11

42

6x12

55

10

5x11

48

5x11

51

6x12

67

6x12

70

10x12

95

22

5x11

66

5x11

82

6x12

89

6x12

109

10x12

124

10x15

171

33

5x11

73

5x11

93

6x12

100

6x12

119

8x12

143

10x16

166

13x21

210

47

6x12

88

6x12

109

6x12

133

8x12

157

8x12

181

13x21

219

13x26

276

100

6x12

183

6x12

195

8x12

228

10x17

271

10x20

295

13x25

390

16x28

485
