SA series

FOR GENERAL PURPOSE

Item

Characteristics

Operating Temperature Range

-40~85°C

-40~85°c

Rated Working Voltage Range

10V~100V DC

160V~450V DC

Capacitance Tolerance (120Hz, 25°C)

±20%(M)

Leakage Current (25°C)

10V~100V DC

160V~450V DC

I0.02CVor 3(uA)

I0.03CV or 40(uA)

I : Leakage Current (uA)
C : Rated Capacitance (uF)
V : Working Voltage (V)
After 5 minutes applying the DC working voltage

Surge Voltage (25°C)

W. V.	10	16	25	35	50	63	100	160	200	250	350	400	450
S. V.	13	20	32	44	63	79	125	200	250	300	400	450	500

Dissipation Factor (120Hz, 25°C)
(Tan.)

W. V.	10	16	25	35	50	63	100	160	200	250	350	400	450
Tan.	0.20	0.17	0.15	0.12	0.10	0.10	0.20	0.20	0.20	0.20	0.20	0.24	0.24

For capacitance exceeding 1000 uF, add 0.02 per increment of 1000 uF

Temperature Characteristics

W. V.	10	16	25	35	50	63	100	160	200	250	350	400	450
-25°C/+25°C	4	3	3	2	2	2	2	8	8	8	12	15	16
-40°C/+25°C	8	6	4	3	3	3	3	6	8	10	-	-	-

Impedance ration at 120Hz

Load Test

After 1000 hours application of W.V. at +85°C
the capacitor shall meet the following limits

Capacitance change	±20% of initial value
Tan.	150% of initial specified value
Leakage current	initial specified value

Shelf Test

After 500 hours application of W.V. at +85°C
the capacitor shall meet the following limits

Capacitance change	± 20% of initial value
Tan.	150% of initial specified value
Leakage current	200% of initial specified value

SAseries

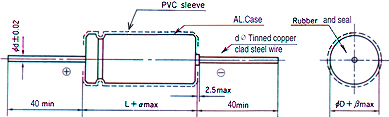

Dimensions

L16=1	D10=0.5
L>16=2	D10=1.0

Unit (mm)

D	5 , 6	8	10	13	16	18	20	22
d±0.02	0.5	0.5	0.6	0.6	0.8	0.8	0.8	0.8

D x L (m/m)

uF\WV	10		16		25		35		50		63		100
0.47									5x13	5	5x13	5	5x13	10
1	Dimension:D x L (mm)								5x13	10	5x13	10	5x13	19
2.2	Ripple Current: mA (rms) at 120Hz 85°C								5x13	19	5x13	28	5x13	29
3.3									5x13	33	5x13	38	5x13	38
4.7									5x13	43	5x13	43	6x13	48
10					5x13	57	5x13	57	5x13	62	6x13	67	6.3x14	67
22			5x13	71	5x13	86	6x13	90	6x13	95	6.3x14	100	8x16	105
33	5x13	57	5x13	105	6x13	105	6.3x14	109	6.3x14	105	8x13	124	10x17	138
47	5x13	86	6x13	124	6x13	124	6.3x14	124	8x13	124	8x16	152	10x21	171
100	6x13	171	6.3x14	171	8x13	171	8x16	200	10x17	238	10x17	257	13x22	333
220	8x13	238	8x13	238	8x16	295	10x17	333	10x21	380	13x22	428	16x28	523
330	8x16	314	8x16	333	10x17	371	10x21	418	13x22	475	13x22	523	16x33	664
470	8x16	380	8x16	418	10x21	456	13x22	523	13x22	617	13x27	713	16x36	855
1000	10x17	599	10x21	646	13x22	808	13x27	855	16x33	998	18x36	1045	22x43
2200	13x22	874	13x24	950	16x28	1140	16x33	1188	18x36	1235	22x43	2440
3300	13x27	1034	16x28	1045	16x33	1235	18x36	1330	22x43	2184	25x52	2870
4700	16x28	1140	16x33	1292	18x36	1425	22x43	2300	25x43	2600	25x52
6800	18x36	1330	18x36	1520	20x36	2460	22x42	2600
10000	18x36	1520	20x36	2500	22x42	2700	25x54

uF\WV	160		200		250		350		400		450
1	6x13	11	6.3x14	11	6.3x14	11	8x16	12	8x16	12	8x16	12
2.2	6x13	18	8x16	18	8x16	20	8x20	20	10x17	20	10x21	20
3.3	8x16	24	8x16	24	8x20	24	8x20	26	10x17	26	10x21	28
4.7	8x16	28	8x16	28	10x17	30	10x21	30	13x22	30	13x22	33
10	10x17	45	10x21	45	10x21	48	13x22	53	13x22	53	13x27	58
22	13x22	76	13x22	76	13x27	90	13x27	93	16x33	93	16x36	98
33	13x22	105	13x27	105	16x28	103	16x33	116	16x36	116	16x40	124
47	13x27	124	13x27	124	16x33	143	16x40	152	18x42	152	18x42	171
100	16x33	204	16x36	204	18x42	233	22x43	247	25x52		25x52
220	18x42	347	22x43	356	22x43
