SLseries

LOW LEAKGE CURRENT

Item

Characteristics

Operating Temperature Range

-40~+85ºC

Rated Working Voltage Range

6.3V~50V DC

Capacitance Tolerance (120Hz, 25ºC)

��20%(M)

Leakage Current ( 25ºC)

I 0.002CV or 0.4 (uA)
I : Leakage Current (uA)
C : Rated Capacitance (uF)

V : Working Voltage (V)
After 3 minutes applying the DC working voltage

Surge Voltage (25ºC)

W. V.	6.3	10	16	25	35	50
S. V.	8	13	20	32	44	63

Dissipation Factor (120Hz, 25ºC)
(Tan.)

W. V.	6.3	10	16	25	35	50
Tan.	0.25	0.20	0.17	0.15	0.12	0.10

Temperature Characteristics

Impedance ration at 120Hz

Load Test

After 1000 hours application of W.V. at +85ºC
the capacitor shall meet the following limits

Shelf Test

After 500 hours application of W.V. at +85ºC
the capacitor shall meet the following limits

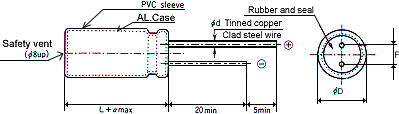

SL	Dimensions

Unit (mm)

D x L (m/m)
