SR series

FOR GENERAL PURPOSE

Item

Characteristics

Operating Temperature Range

-40~85ºC

-25~85ºC

Rated Working Voltage Range

10V~100V DC

160V~450V DC

Capacitance Tolerance (120Hz, 25ºC)

��20%(M)

Capacitance Tolerance (120Hz, 25ºC)

10V~100V DC

160V~ 450V DC

I0.02CV or 3 (uA)

I0.03CV or 40 (uA)

I : Leakage Current (uA)
C : Rated Capacitance (uF)
V : Working Voltage (V)
After 5 minutes applying the DC working voltage

Surge Voltage (25ºC)

W. V.	10	16	25	35	50	63	100	160	200	250	350	400	450
S. V.	13	20	32	44	63	79	125	200	250	300	400	450	500

Dissipation Factor (120Hz, 25ºC)
(Tan.)

W. V.	10	16	25	35	50	63	100	160	200	250	350	400	450
Tan.	0.20	0.17	0.15	0.12	0.10	0.10	0.20	0.20	0.20	0.20	0.20	0.24	0.24

For capacitance exceeding 1000 uF, add 0.02 per increment of 1000 uF

Temperature Characteristics

W. V.	10	16	25	35	50	63	100	160	200	250	350	400	450
-25ºC/+25ºC	4	3	3	2	2	2	2	8	8	8	12	15	16
-40ºC/+25ºC	8	6	4	3	3	3	3	6	8	10	-	-	-

Impedance ration at 120Hz

Load Test

After 1000 hours application of W.V. at +85ºC
the capacitor shall meet the following limits

Capacitance change	��20% of initial value
Tan.	150% of initial specified value
Leakage current	initial specified value

Shelf Test

After 500 hours application of W.V. at +85ºC
the capacitor shall meet the following limits

Capacitance change	��20% of initial value
Tan.	150% of initial specified value
Leakage current	200% of initial specified value

SRseries

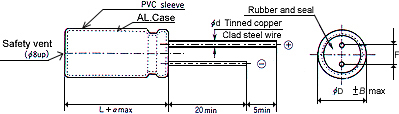

Dimensions

L16=1	D10=0.5
L>16=2	D10=1.0

Unit (mm)

D	5	6	8	10	13	16	18	22	25
F �� 0.5	2	2.5	3.5	5	5	7.5	7.5	10	12.5
d �� 0.02	0.5	0.5	0.5	0.6	0.6	0.8	0.8	0.8	1.0

D x L (m/m)

uF\WV	10		16		25		35		50		63		100
0.47									5x11	5	5x11	5	5x11	10
1	Dimension:D x L (mm)								5x11	10	5x11	10	5x11	19
2.2	Ripple Current : mA (rms) at 120Hz 85ºC								5x11	19	5x11	28	5x11	29
3.3									5x11	33	5x11	38	5x11	38
4.7									5x11	43	5x11	43	5x11	48
10			5x11	57	5x11	57	5x11	57	5x11	62	5x11	67	6x11	67
22			5x11	71	5x11	86	5x11	90	5x11	95	6x11	100	8x12	109
33			5x11	105	5x11	105	5x11	109	6x12	105	8x12	124	8x14	138
47	5x11	86	5x11	124	5x11	124	6x12	124	6x12	124	8x12	152	10x15	171
100	5x11	171	5x11	171	6x12	171	8x12	200	8x12	238	10x12	257	10x21	333
220	6x12	238	6x12	238	8x12	295	8x14	333	10x17	380	10x21	428	13x26	523
330	6x12	314	8x12	333	8x14	371	10x16	418	10x21	475	13x21	523	16x26	664
470	8x12 6.3x12	380	8x12	418	8x14	456	10x16	523	13x21	617	13x21	713	16x32	855
1000	8x14	599	10x16	646	10x16 10x21	808	13x21 13x24	855	16x21 16x26	998	16x32 16x36	1045	20x36	1960
2200	10x21	874	10x21 13x21	950	13x21 13x26	1140	16x26 16x32	1188	16x32 16x36	1235	18x36 20x36	2440	25x45
3300	13x21	1034	13x21 13x26	1045	16x26 16x32	1235	16x32 16x36	1330	18x36 20x36	2184	22x42	2870
4700	13x26	1140	16x26 16x32	1292	16x32 16x36	1425	18x36 20x36	2300	22x42	2600	25x45	3415
6800	16x32	1330	16x32	1520	18x36	2460	22x36	2600	25x45	3050
10000	16x32 18x36	1520	18x36	2500	22x36	2700	25x45	3200	25x50	4100

uF\WV	160		200		250		350		400		450
1	5x11	11	6x11	11	6x12	11	8x12	12	8x12	12	8x12	12
2.2	6x11	18	8x12	18	8x12	20	8x14	20	10x16	20	10x16	20
3.3	8x12	24	8x12	24	8x12	24	10x16	26	10x16	26	10x16	28
4.7	8x12	28	8x14	28	8x14	30	10x16	30	10x16	30	10x16	33
10	8x16	45	10x16	45	10x16	48	10x21	53	10x21	53	13x24	58
22	10x16	76	10x21	76	10x21	90	13x21	93	13x21	93	16x26	98
33	13x21	105	13x21	105	13x21	103	16x26	116	16x26	116	16x26	124
47	13x21	124	13x26	124	13x26	143	16x26	152	16x36	152	18x36	171
100	16x26	204	16x26	204	16x36	233	18x36	247	22x36		22x42
220	16x36	347	18x36	356	22x36		25x50
