SZseries

HIGH FREQUENCY,LOW IMPEDANCE FOR SWITCHING POWER SUPPLY.

Item

Characteristics

Operating Temperature Range

- 40~105ºC

Rated Working Voltage  Range

10V~50V DC

Capacitance Tolerance
(120Hz,25ºC )

��20%(M)

Leakage Current (25ºC )

I 0.01CV+3 (uA)
  I : Leakage Current (uA)
    C : Rated Capacitance (uF)
V : Working Voltage (V)
After 5 minutes applying the DC working voltage

Surge Voltage (25ºC   )

Disspation Fator (120Hz,25ºC )
(Tan.)

For capacitance exceeding 1000 uF, add 0.02 per increment of 1000 uF

Temperature Characteristics

Impedance ratio at 120Hz

Load Test

After 1000 hours application of W.V. at +105ºC
the capacitor shall meet the following limits

Shelf Test

After 500 hours application of W.V. at +105ºC
the capacitor shall meet the following limits

SZ

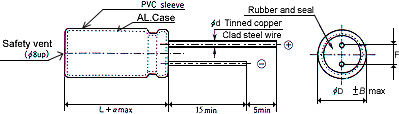

Dimensions

L16=1

D10=0.5

L>16=2

D10=1.0

Unit(mm)

D

5

6

8

10

13

16

F �� 0.5

2

2.5

3.5

5

5

7.5

d �� 0.02

0.5

0.5

0.5

0.6

0.6

0.8

DxL(mm)

uF\WV

10V

16V

25V

35V

50V

10

5x11

22

511

5x11

5x11

6x12

6x12

33

5x11

5x11

5x11

6x12

6x12

47

5x11

5x11

6x12

6x12

6x12

100

6x12

6x12

6x12

8x12

8x12

220

6x12

8x12

8x12

10x17

13x21

330

8x12

8x12

10x15

10x20

13x26

470

8x12

8x12

10x15

10x15

13x26

1000

10x20

10x20

10x20

13x21

16x26

2200

10x24

13x26

16x26

16x26

 18x36

3300

13x31

13x31

16x26

4700

13x31

16x26

WV

10V

16V

25V

35V

50V

 ITEM\

�@

uF

PERMISS-
IBLERIP-
PLECUR
REN(mA)

IMPEDAN-
CE 20 C
100KHz
MAX(Ω)

PERMISS-
IBLE
RIPPLECU-
R REN(mA)

IMPEDA-
NCE20 C
100KHz
MAX(Ω)

PERMIS-
SIBLE
RIPPLE-
CURRE N
(mA)

IMPEDAN-
CE
20 C 100KHz
MAX(Ω)

PERMISS-
IBLE
RIPPLECU-
R REN(mA)

IMPEDAN-
CE 20 C
100KHz
MAX(Ω)

PERMISS-
IBLE
RIPPLECU-
R REN(mA)

IMPEDAN-
CE20 C
100KHz
MAX(Ω)

   10

40

2.5

22

33

2.4

38

2.0

40

1.9

45

1.30

66

0.90

33

40

2.0

45

1.5

50

1.4

64

0.85

80

0.78

47

55

1.5

60

1.3

65

0.77

82

0.68

120

0.52

100

85

1.0

100

0.85

170

0.40

210

0.45

240

0.25

220

140

0.61

210

0.44

270

0.30

350

0.18

500

0.16

330

230

0.50

300

0.30

370

0.21

470

0.14

640

0.11

470

310

0.32

400

0.08

500

0.14

700

0.08

760

0.08

1000

560

0.12

760

0.10

880

0.08

960

0.05

1400

0.05

2200

900

0.07

1200

0.06

1300

0.05

1600

0.045

3300

1200

0.061

1400

0.045

1600

0.045

4700

1500

0.05

1700

0.042
